Weapon Details: SIG P230 7.65mm   (Created: 29.05.2025, Changed: 17.04.2026)

Weapon Details | Pictures (6) | Market monitoring (104) | Ammunition (2)



Weapon Details (Top):

Weapon: SIG P230 7.65mm Calibre: 7.65mm Browning First Issued: 1977 Overall Length: 168 mm Overall Height: 119 mm Overall Width: 31 mm Weight (unloaded): 730 g Barrel Length: 92 mm Line of Sight: 120 mm Rifling: 250 mm Grooves: 6 Magazine Capacity: 7 Rounds Permission required: Ger: Waffenerwerbschein der zuständigen Polizeibehörde. AVG2 (CH): Patreon only!   Price statistics



Other weapons in the series (Top):

SIG P230
SIG P230 7.65mm
SIG P230 9mm short
SIG Sauer P232


Description (Top):

The year of proof of SIG Sauer pistols, which corresponds grosso-modo to the year of manufacture, is coded at the bottom front of the slide using letters (see Picture). Later pistols also have a letter code next to the proof mark (Picture, code BK = 19 = 2019). The letters have the following meaning: A: 0 B: 1 C: 2 D: 3 E: 4 F: 5 G: 6 H: 7 I/J: 8 K: 9 The coding "JG" in the above picture therefore corresponds to the year 1986 (86). The letters "I" and "J" both represent the digit "8".




Market monitoring (Top):

--> Click for details: Market monitoring (104)


Ammunition (Top):

7.65mm pistol cartridge 326
7.65mm Browning



Pictures (Top):

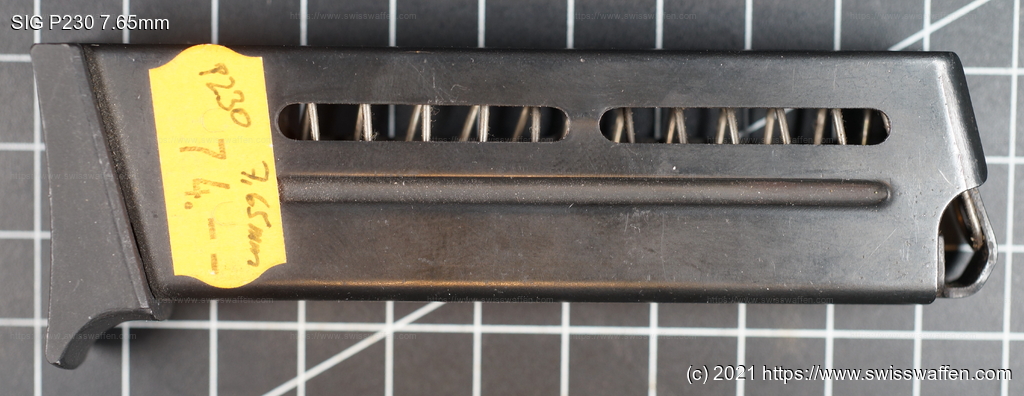

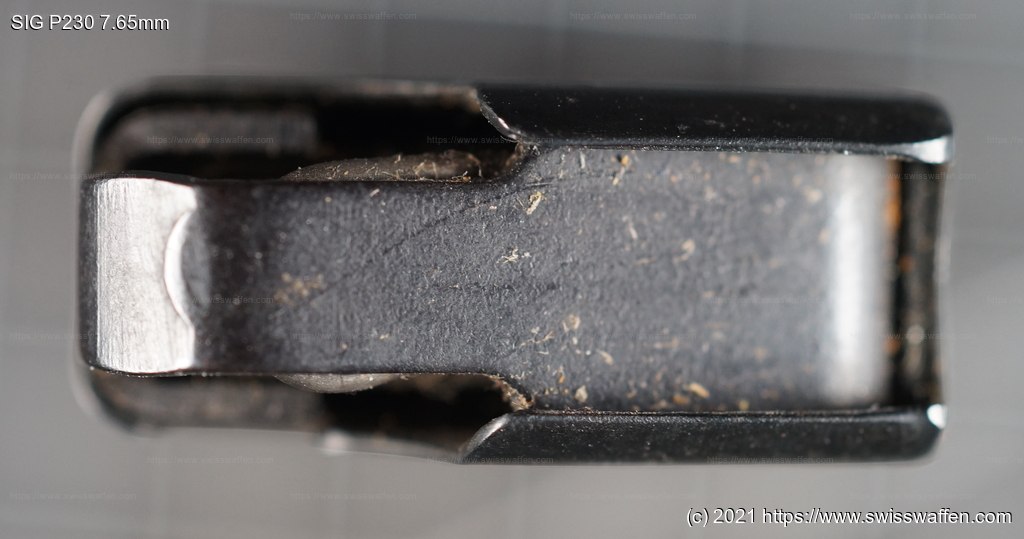

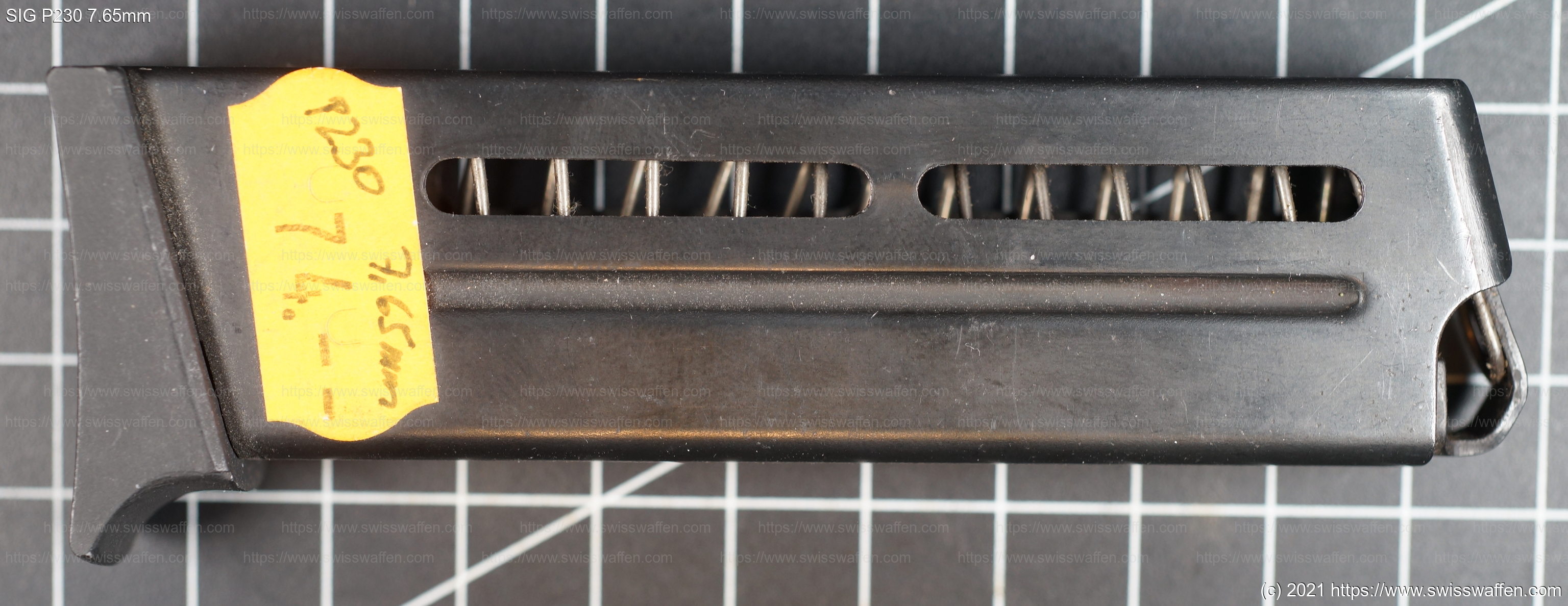

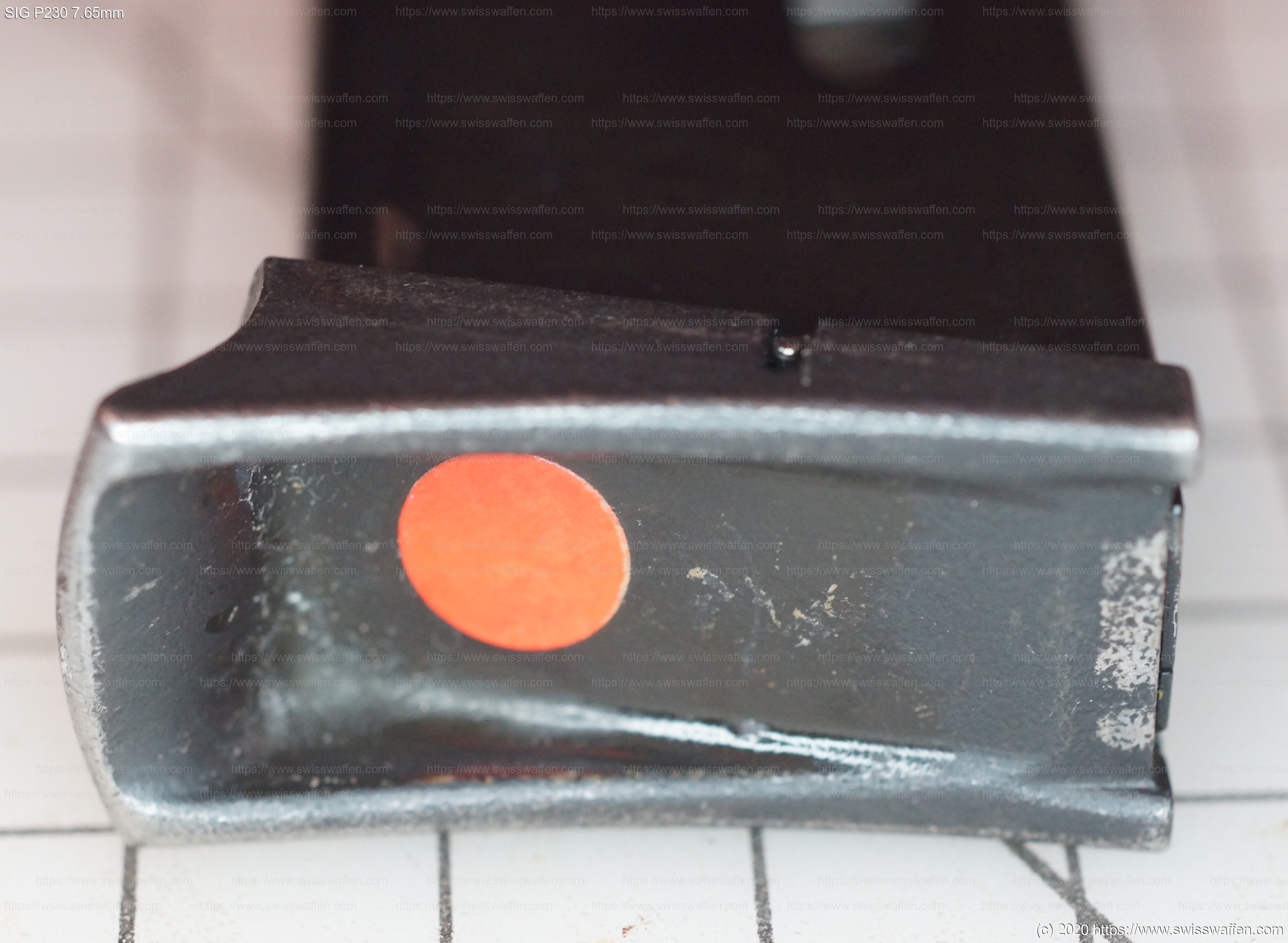

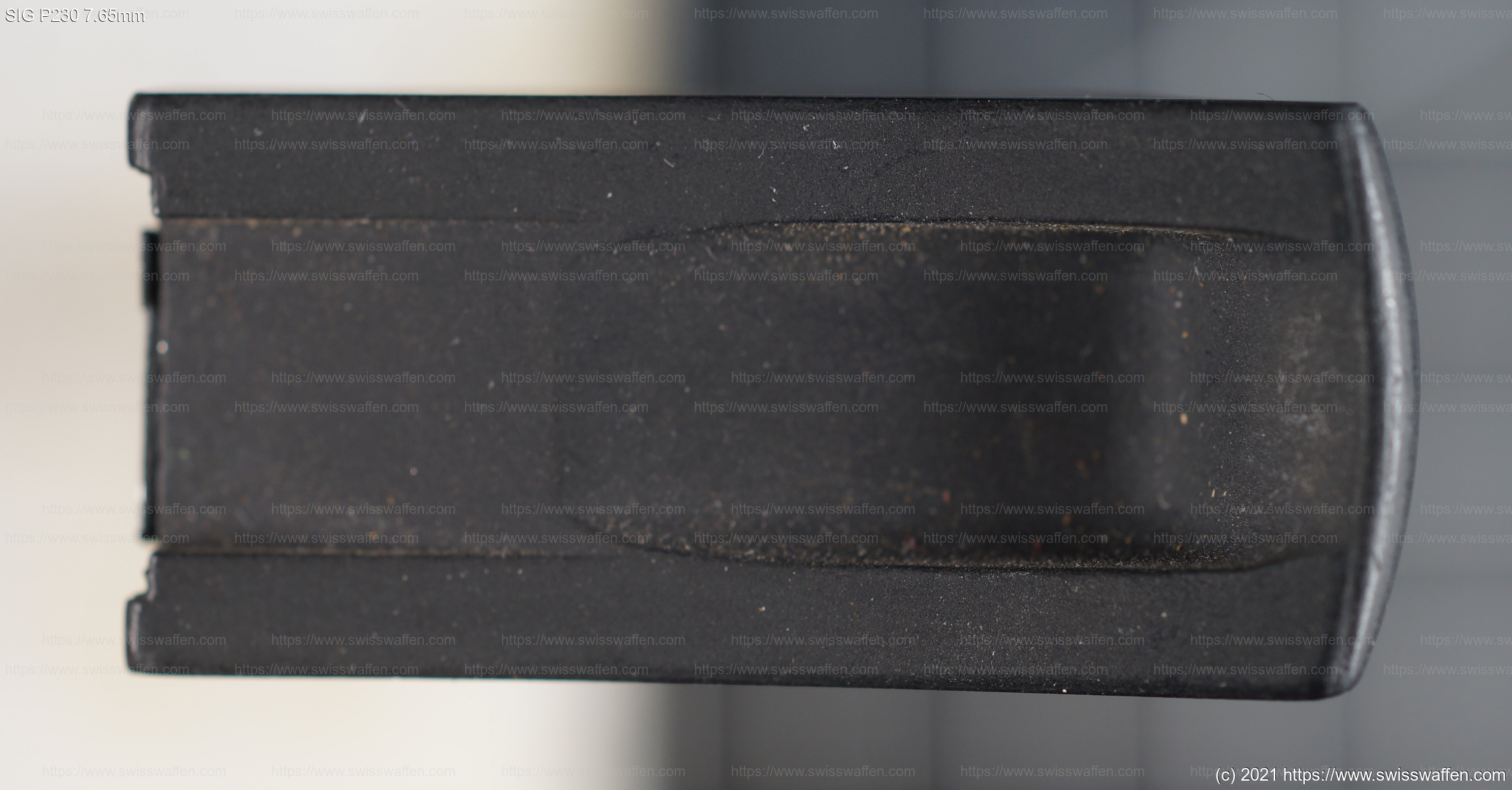

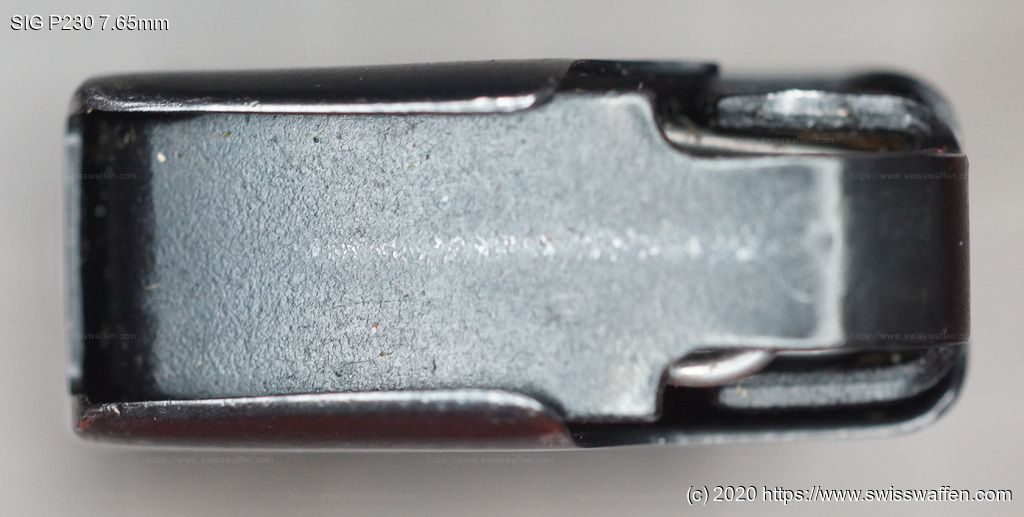

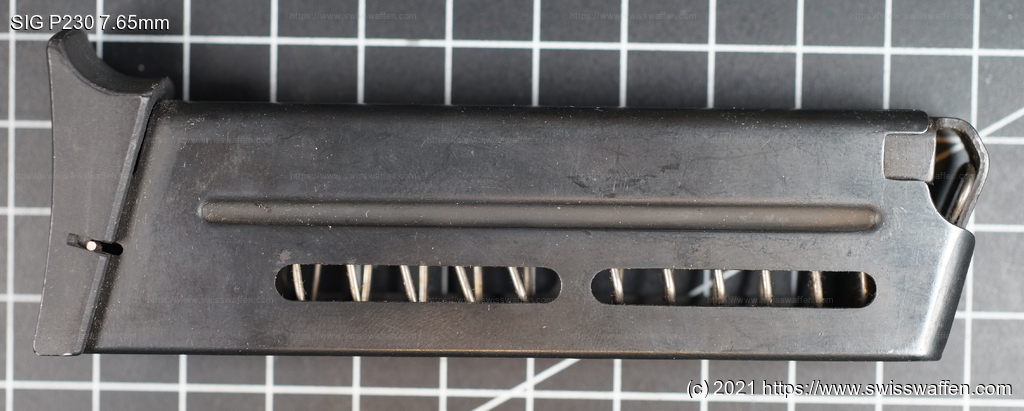

Full size (1.3 MB) Magazin SIG Sauer P230, 7.65mm Br. SIG Sauer, Eckernförde, 7.65mm Browning, Deutschland	Full size (1.1 MB) Magazin SIG Sauer P230, 7.65mm Br. SIG Sauer, Eckernförde, 7.65mm Browning, Deutschland	Full size (2.5 MB) Magazin SIG Sauer P230, 7.65mm Br. SIG Sauer, Eckernförde, 7.65mm Browning, Deutschland	Full size (2.5 MB) Magazin SIG Sauer P230, 7.65mm Br. SIG Sauer, Eckernförde, 7.65mm Browning, Deutschland	Full size (2.6 MB) Magazin SIG Sauer P230, 7.65mm Br. SIG Sauer, Eckernförde, 7.65mm Browning, Deutschland
Full size (2.9 MB) Magazin SIG Sauer P230, 7.65mm Br. SIG Sauer, Eckernförde, 7.65mm Browning, Deutschland
