Rifle Details: Browning A Bolt   (Created: 31.10.2021, Changed: 03.11.2021)

Rifle Details | Pictures (9) | Market monitoring (171) | Attachements (2)



Rifle Details (Top):

Rifle Name: Browning A Bolt

Description:

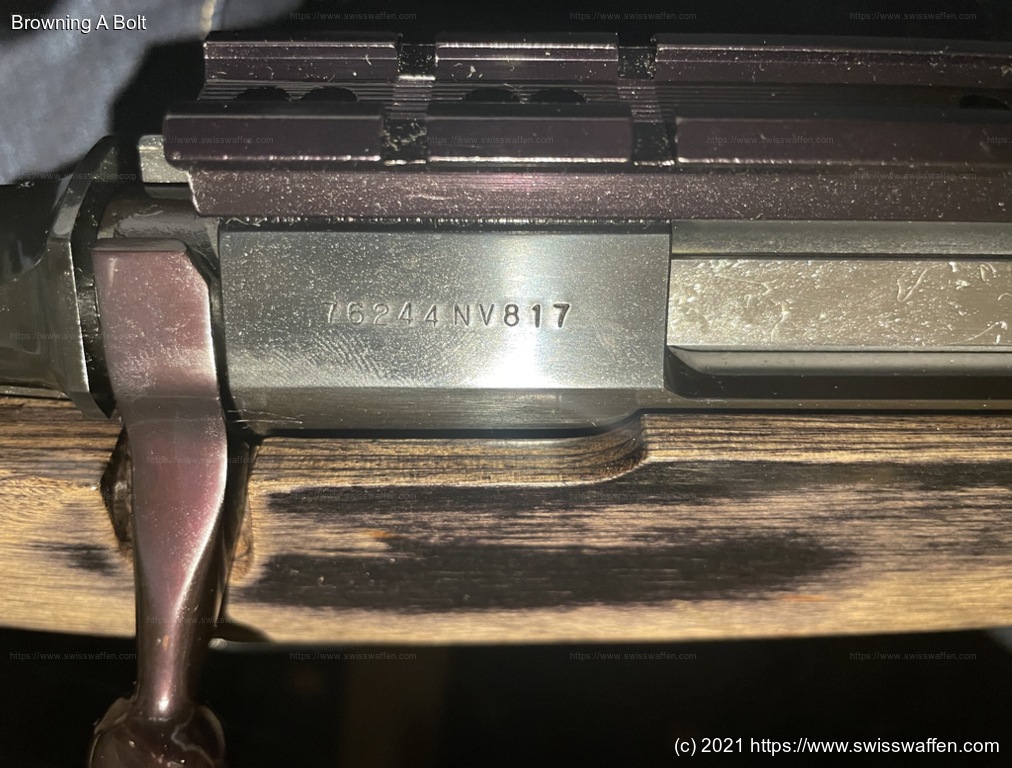

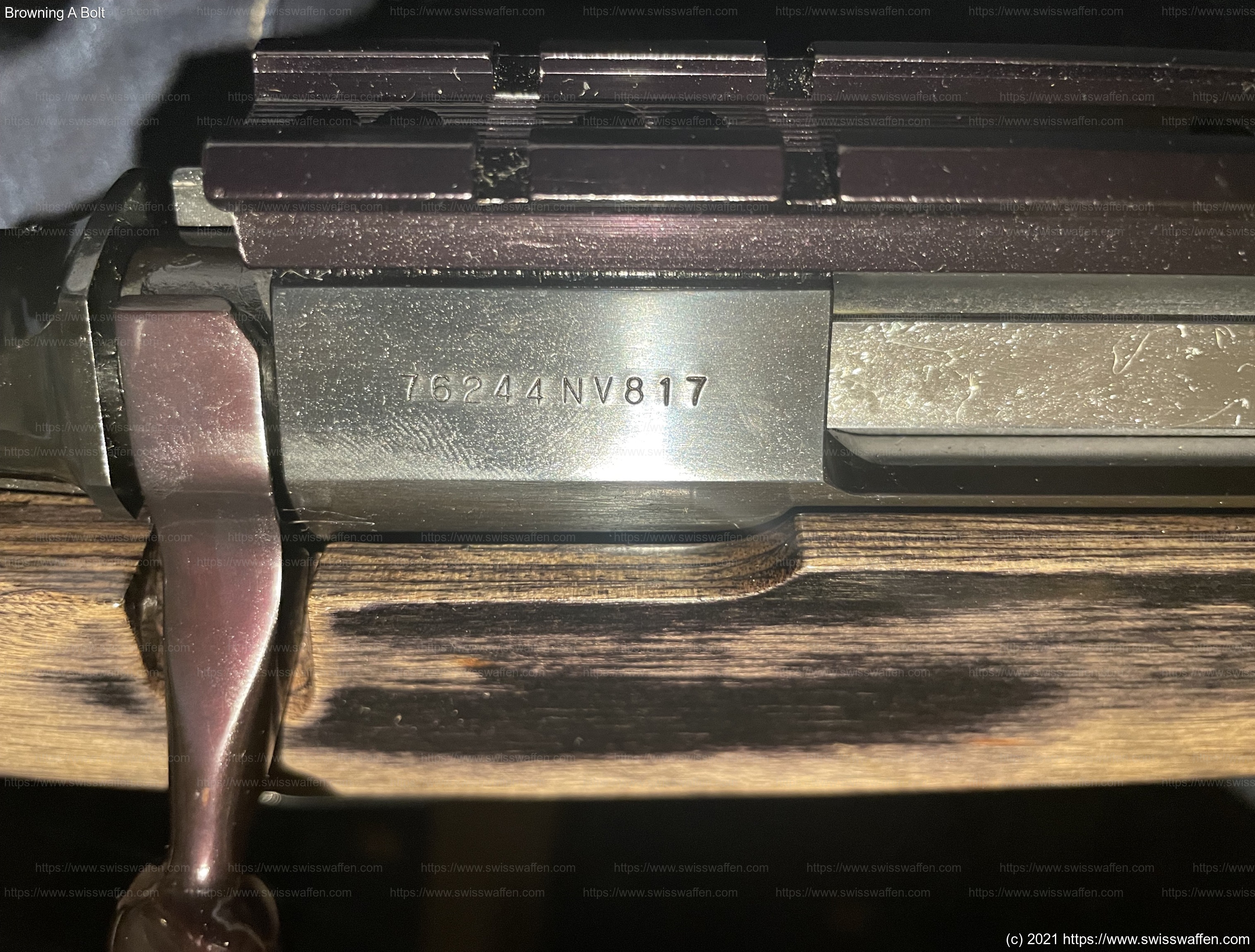

The numbering of the Browning A Bolt can be decoded as follows:   The first five digits are the effective serial number, which starts each year at 01001.   Then follow two letters representing the year of manufacture, where the coding is: Z = 1 Y = 2 X = 3 W = 4 V = 5 T = 6 R = 7 P = 8 N = 9 M = 0   Three digits follow at the end, designating the model: 2G7 = Gold Medallion (A-Bolt first edition, 1985 - 1993) 217 = Medallion (A-Bolt first edition, 1985 - 1993) L17 = Medallion Left Hand (A-Bolt first edition, 1985 - 1993) 2M7 = Micro Medallion (A-Bolt first edition, 1985 - 1993) 717 = Hunter (A-Bolt first edition, 1985 - 1993) E17 = Euro-Bolt (A-Bolt first edition, 1985 - 1993) 7S7 = Stainless Stalker (A-Bolt first edition, 1985 - 1993) LS7 = Stainless Stalker Left Hand (A-Bolt first edition, 1985 - 1993) 7C7 = Composite Stalker (A-Bolt first edition, 1985 - 1993) 3G7 = Gold Medallion (A-Bolt II, 1994 - 1998) 317 = Medallion (A-Bolt II, 1994 - 1998) K17 = Medallion Left-Hand (A-Bolt II, 1994 - 1998) 3M7 = Micro Medallion (A-Bolt II, 1994 - 1998) H17 = Eclipse (A-Bolt II, 1994 - 1998) 8S7 = Stainless Stalker (A-Bolt II, 1994 - 1998) KS7 = Stainless Stalker Left-Hand (A-Bolt II, 1994 - 1998) 8C7 = Composite Stalker (A-Bolt II, 1994 - 1998) 817 = Hunter (A-Bolt II, 1994 - 1998) 351 = all A-Bolt II modells (from 1998)   Example: 76244NV817: This is serial number 76244, Manufactured 1995 (NV) and the model is an A-Bolt II Hunter.   Source: https://www.browning.com/support/date-your-firearm/abolt-rifle.html




Market monitoring (Top):

--> Click for details: Market monitoring (171)


Attachements (Top):

BRABOLT-14-BFA-331_ABolt Rifle OM_WEB.pdf (PDF, 4.4 MB, Source: Internet (Browning))
BRABOLT-abolt-pre93-om-s.pdf (PDF, 5.6 MB, Source: Internet (Browning))



Pictures (Top):

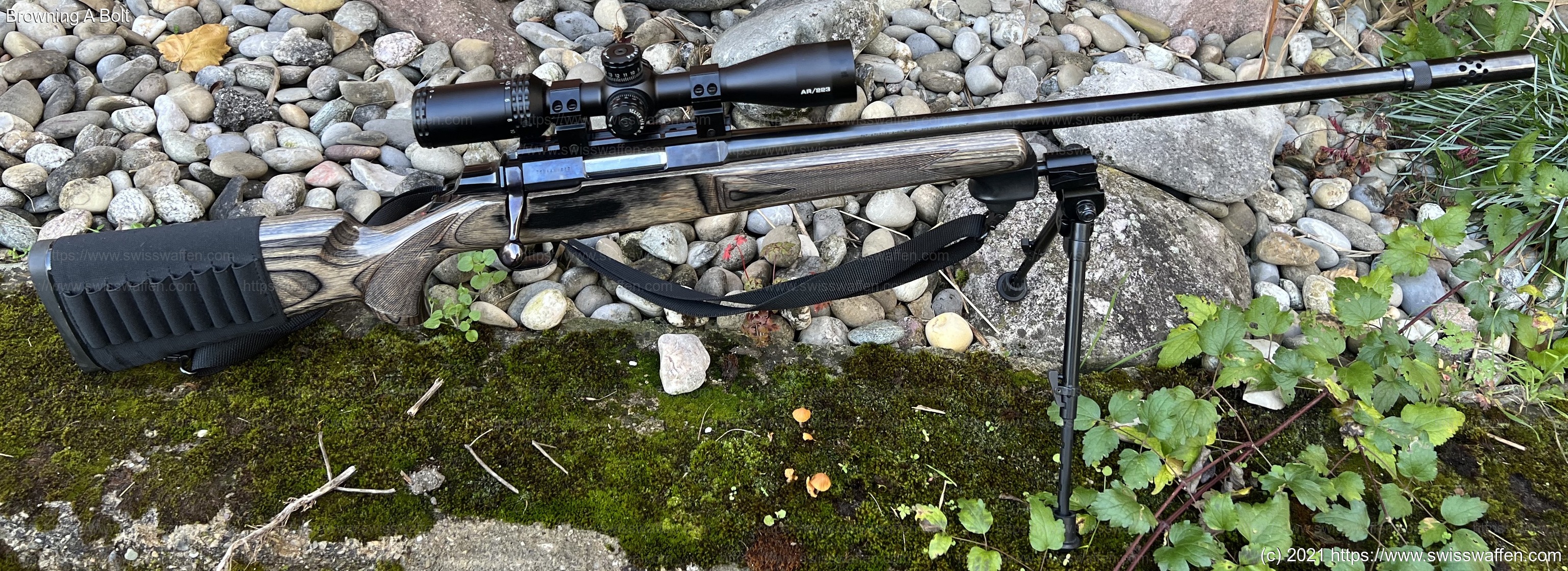

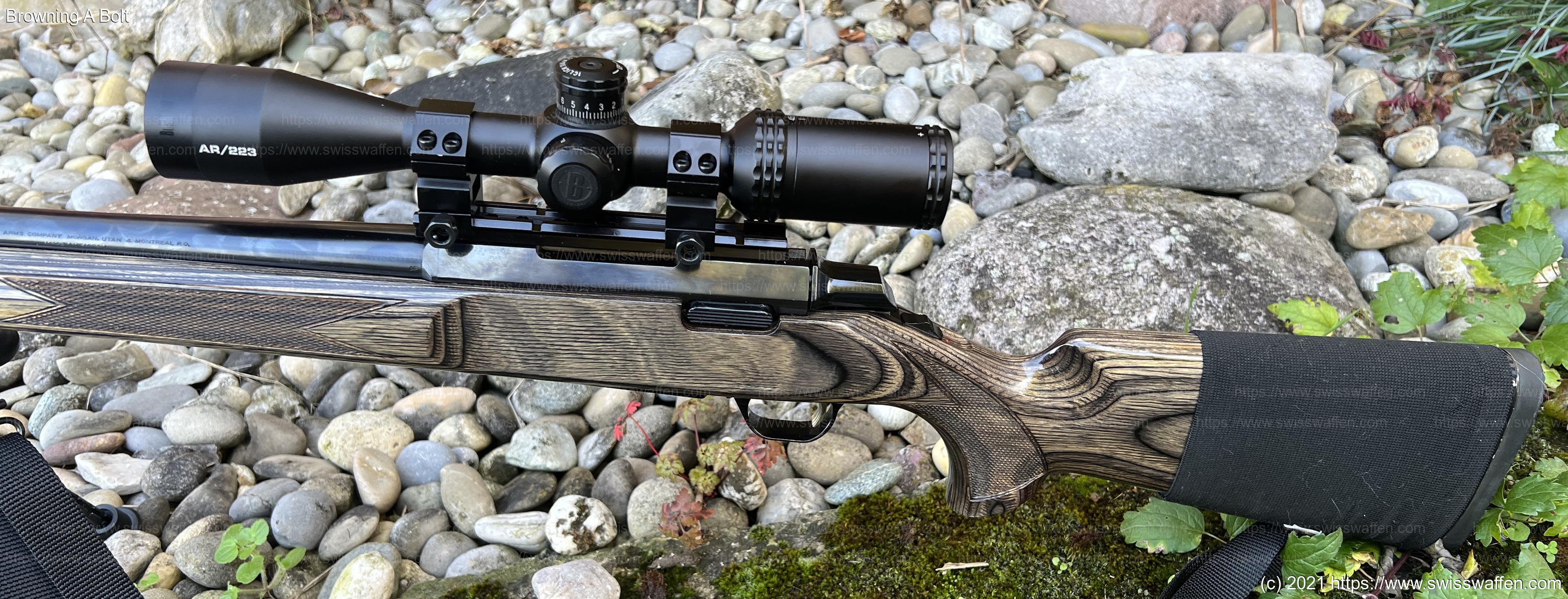

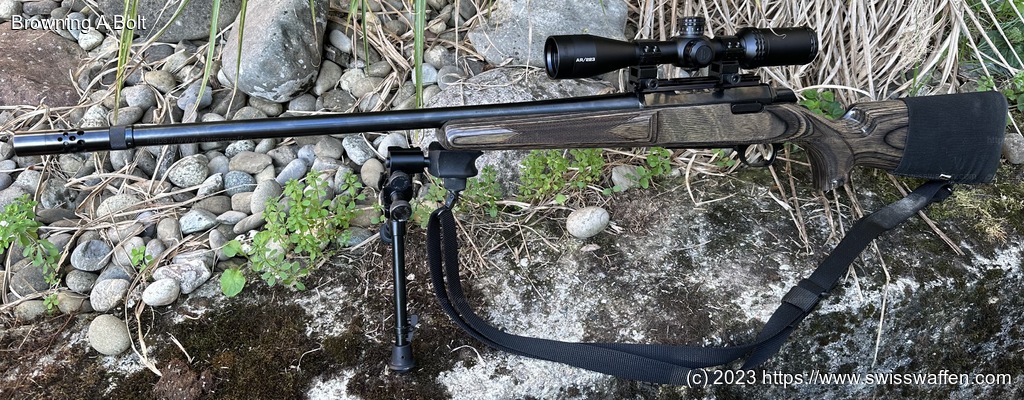

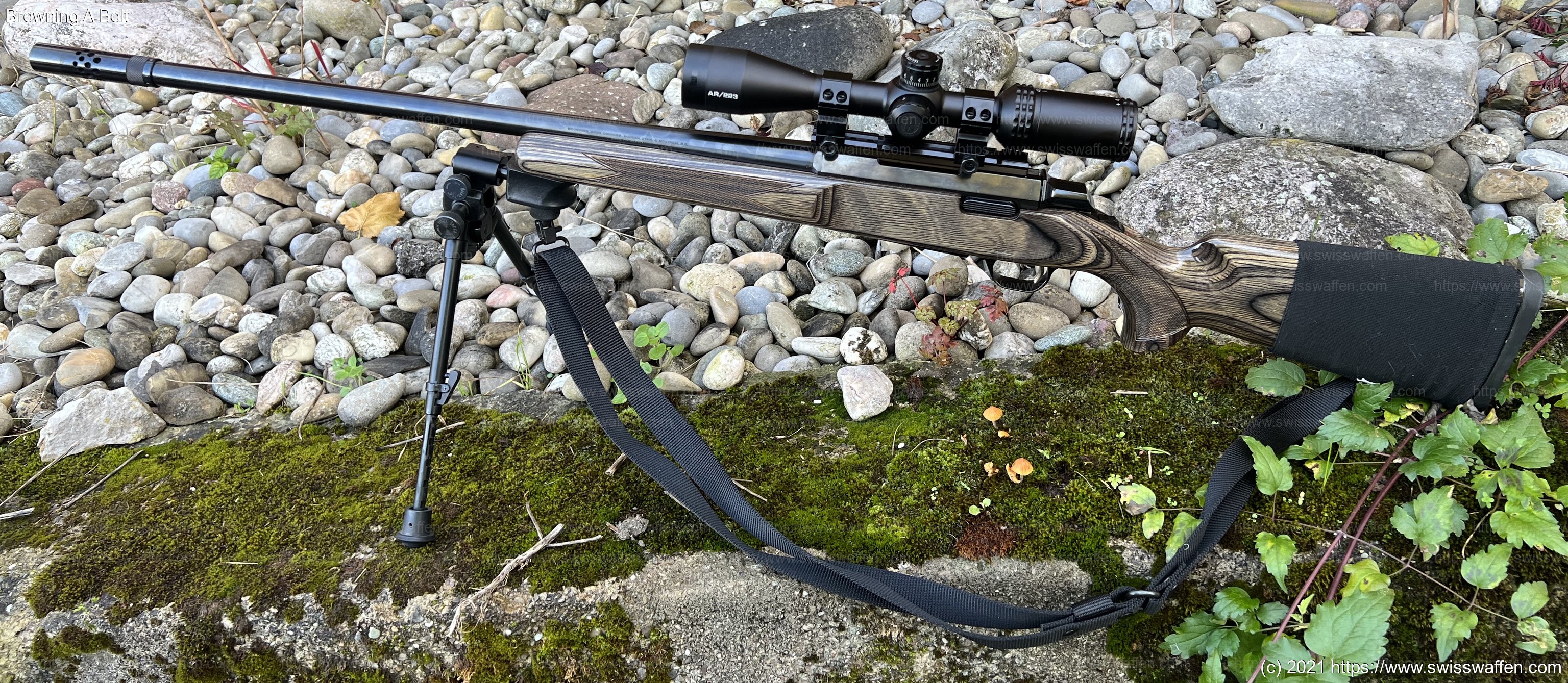

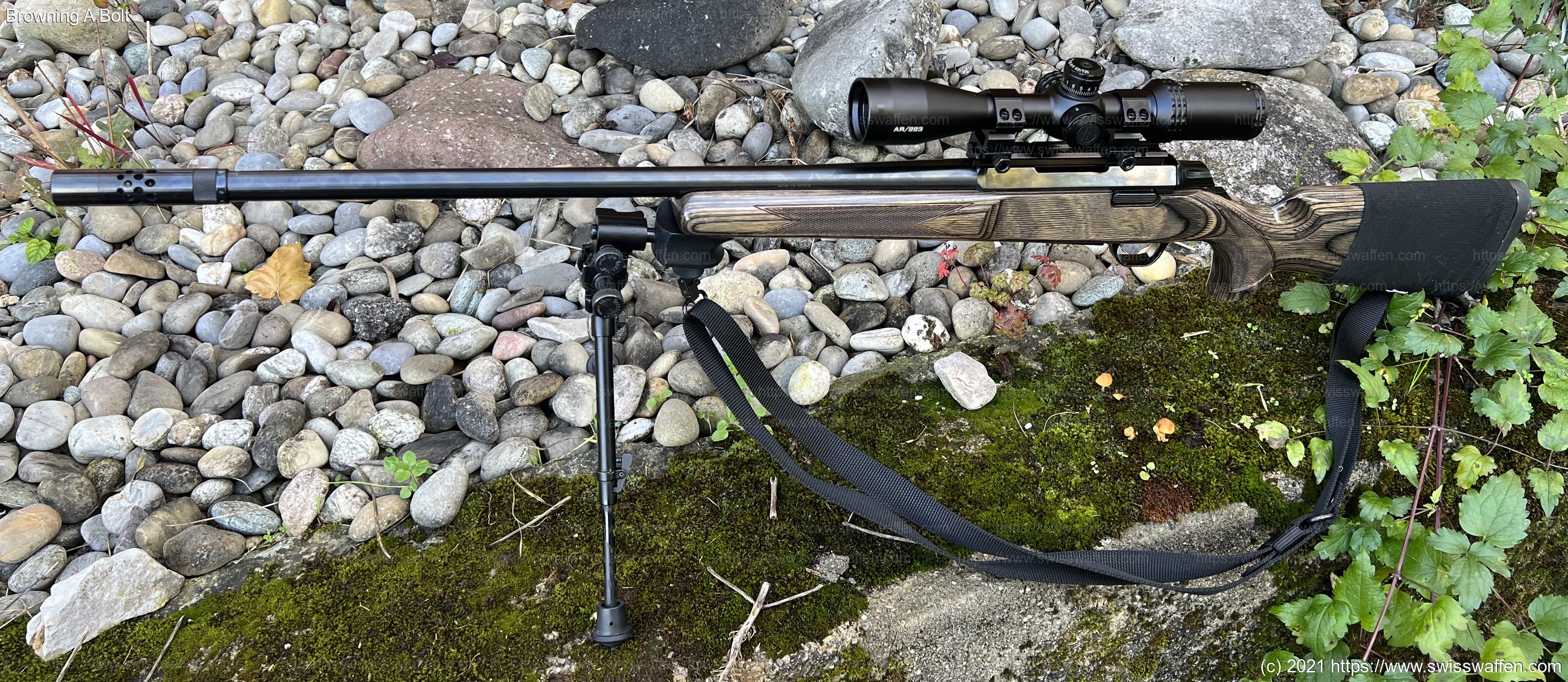

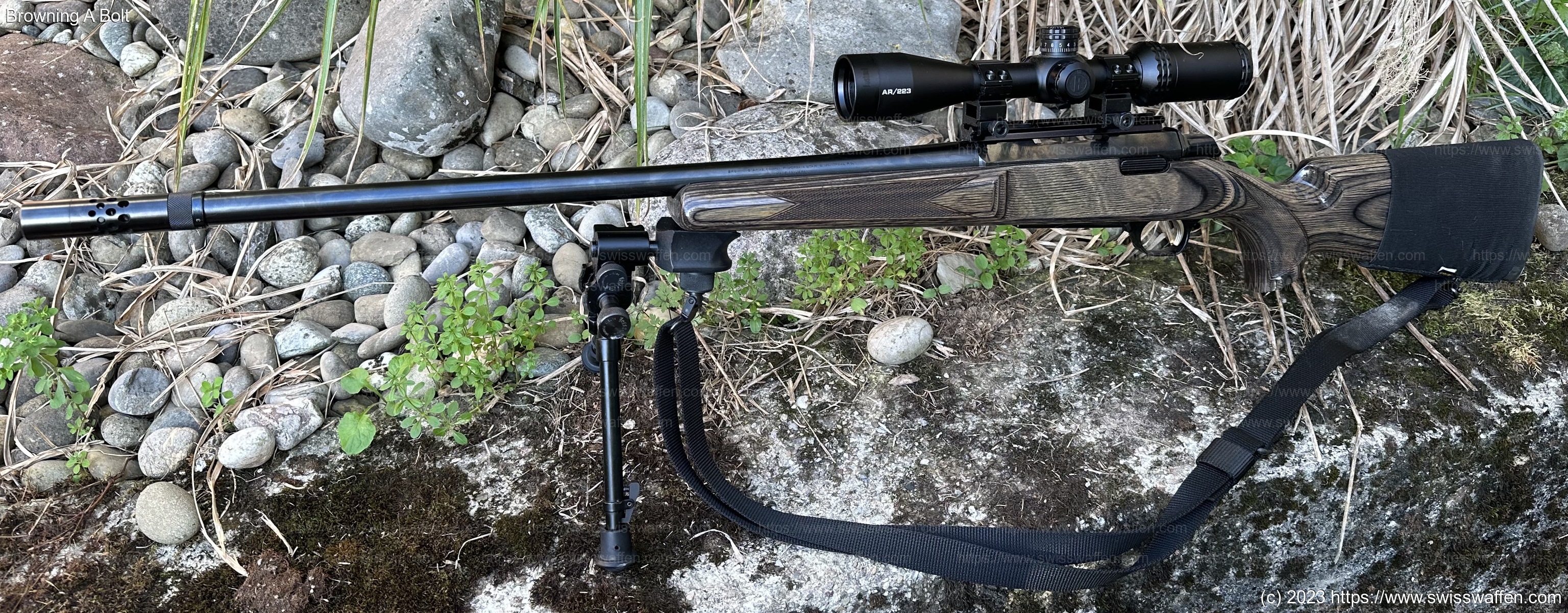

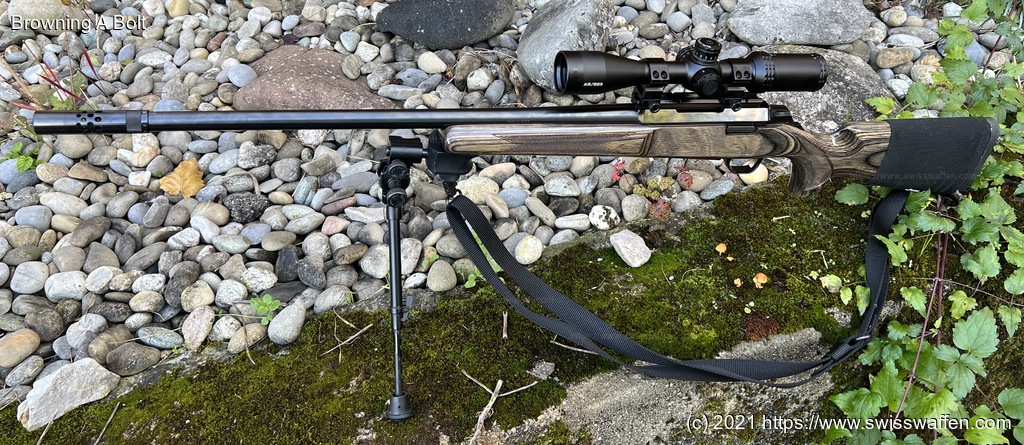

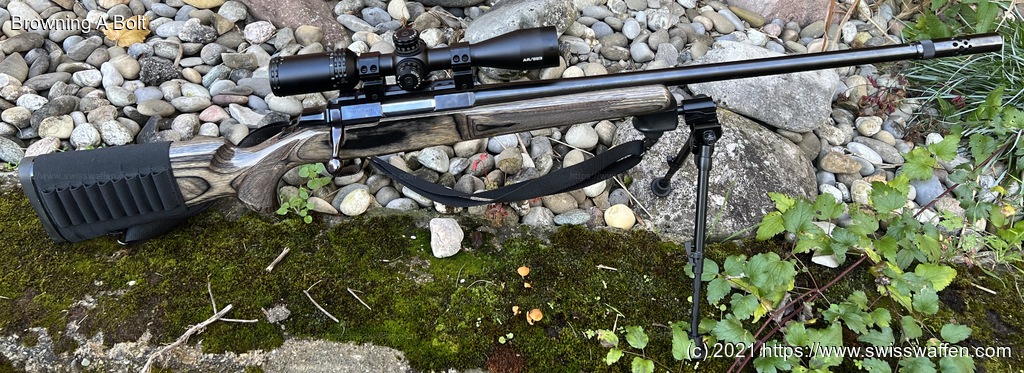

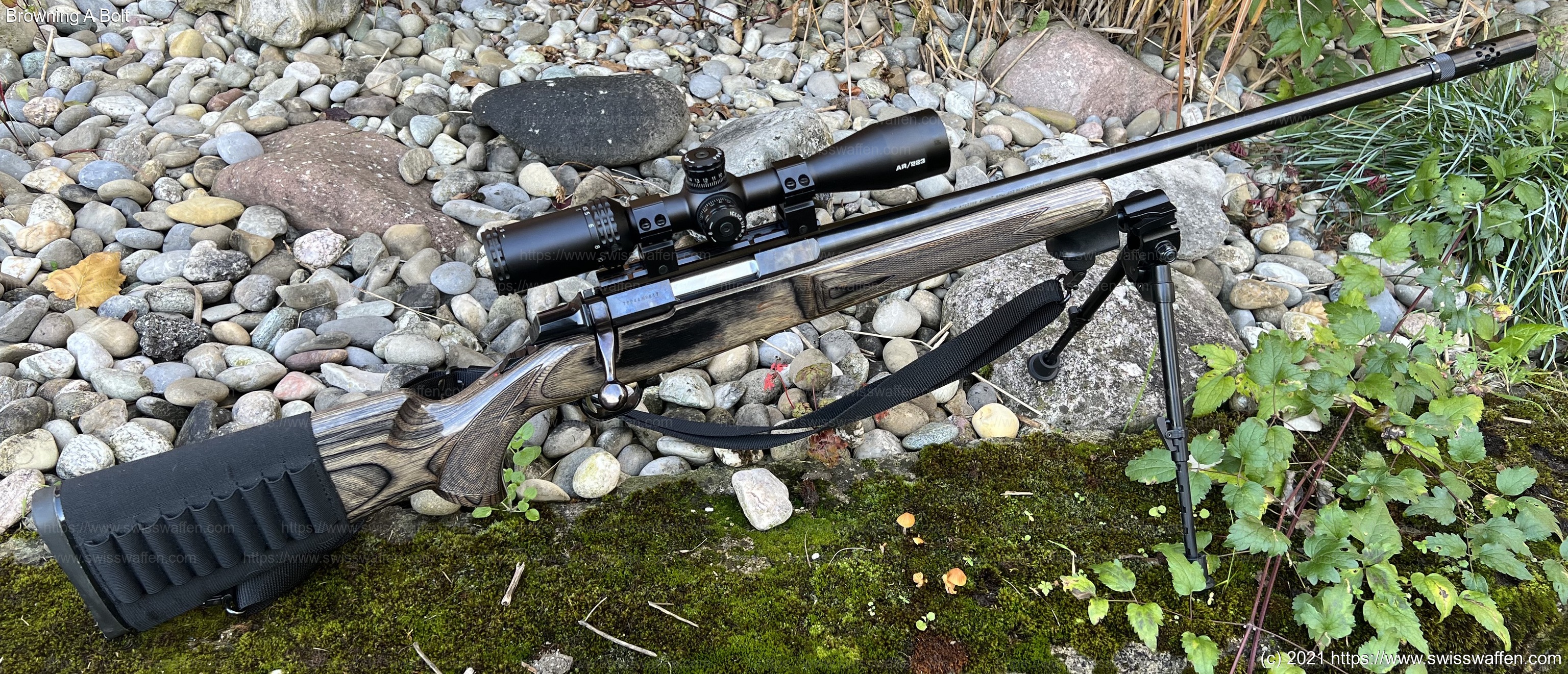

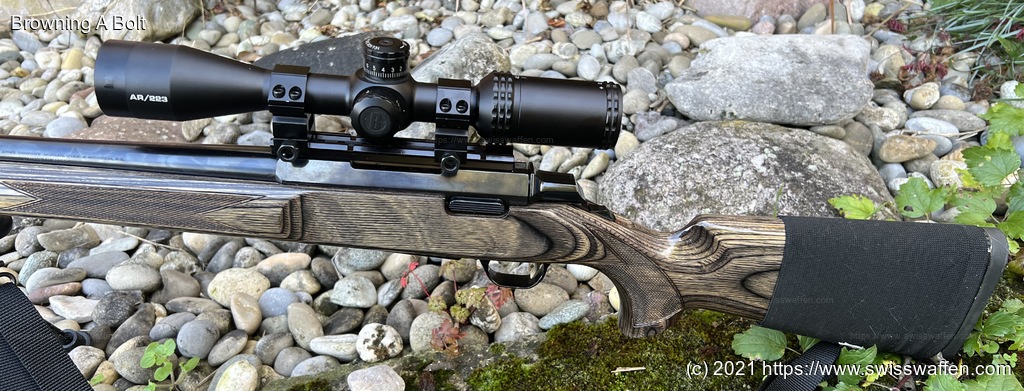

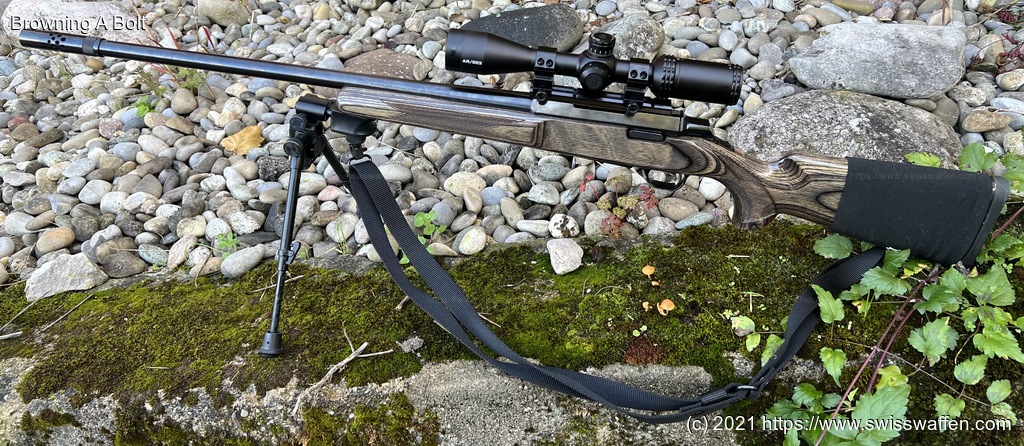

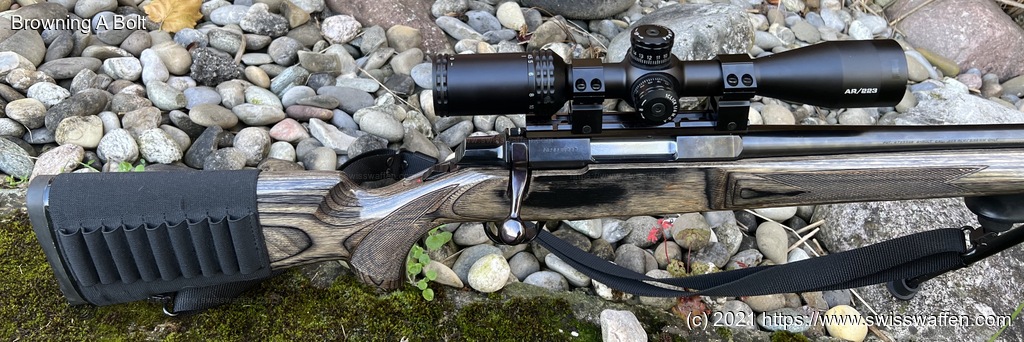

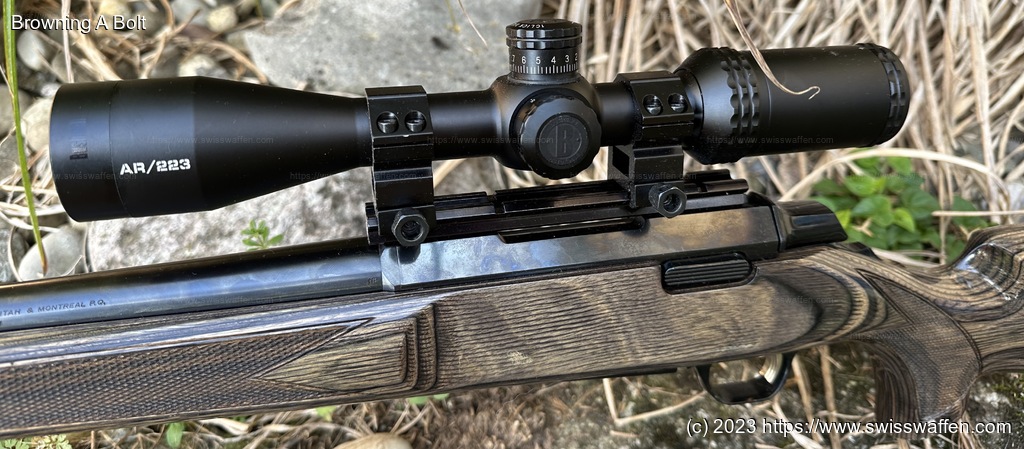

Full size (1.6 MB) Browning A Bolt



Full size (1.9 MB) Browning A Bolt	Full size (2 MB) Browning A Bolt	Full size (2 MB) Browning A Bolt	Full size (1.4 MB) Browning A Bolt	Full size (2 MB) Browning A Bolt
Full size (1.2 MB) Browning A Bolt	Full size (1.6 MB) Browning A Bolt	Full size (1.9 MB) Browning A Bolt	Full size (1.2 MB) Browning A Bolt
