Weapon Details: Model 1878 Ordnance Revolver   (Created: 09.02.2014, Changed: 17.06.2018)

Weapon Details | Pictures (29) | Market monitoring (235) | Ammunition (3) | Accessories (1) | Attachements (2)



Weapon Details (Top):

Weapon: Model 1878 Ordnance Revolver Calibre: 10.4mm Revolver First Issued: 1878 Number of Pieces: 4601 Overall Length: 280 mm Weight (unloaded): 1100 g Barrel Length: 150 mm Rifling: 250 mm Rifling Dir.: R Grooves: 4 Magazine Capacity: 6 Rounds Permission required: Ger: Waffenerwerbschein der zuständigen Polizeibehörde.

Description:

Text only available in German: Laut Bundesratsbeschluss (BRB) vom 27. September 1878 wurde der Musterrevolver Nr. 8, System Warnant zum Ordonnanzrevolver 1878 erklärt.   Diese Ausführung wurde jedoch nie hergestellt, da von Rudolf Schmidt viele Änderungsvorschläge eingereicht wurden. Diese wurden von Friedrich Vetterli überprüft und flossen gemäss Bundesratsbeschluss vom 21. Mai 1879 in die Produktion ein.   Vom Revolver 1878 (Model 1878 Ordnance Revolver) wurden total 4'601 Stück hergestellt, wovon 4'600 Stück an die Kriegsmaterialverwaltung (KMV) geliefert wurden.   Die Waffen waren in zwei Lieferungen aufgeteilt: Lieferung von 1880: 3'400 Revolver Lieferung von 1881: 1'200 Revolver   Die Seriennummern sind nicht überliefert.

Revolver 1878




Market monitoring (Top):

Click for details: Market monitoring (236)



Ammunition (Top):

10.4mm Revolverpatrone 1872
10.4mm Revolverpatrone 1878
Blinde 10.4mm Revolverpatrone 1878



Accessories (Top):

Putzzeug Revolver, Mod. 1878



Attachements (Top):

Zeichnungstafeln Revolver 1878 (1879) (PDF, 7 MB, Source: Scan by swisswaffen.com)
R78-Anleitung zur Kenntnis und Behandlung des Revolvers Modell 1878 - Nachdruck.pdf (PDF, 1.6 MB, Source: Scan by swisswaffen.com)



Pictures (Top):

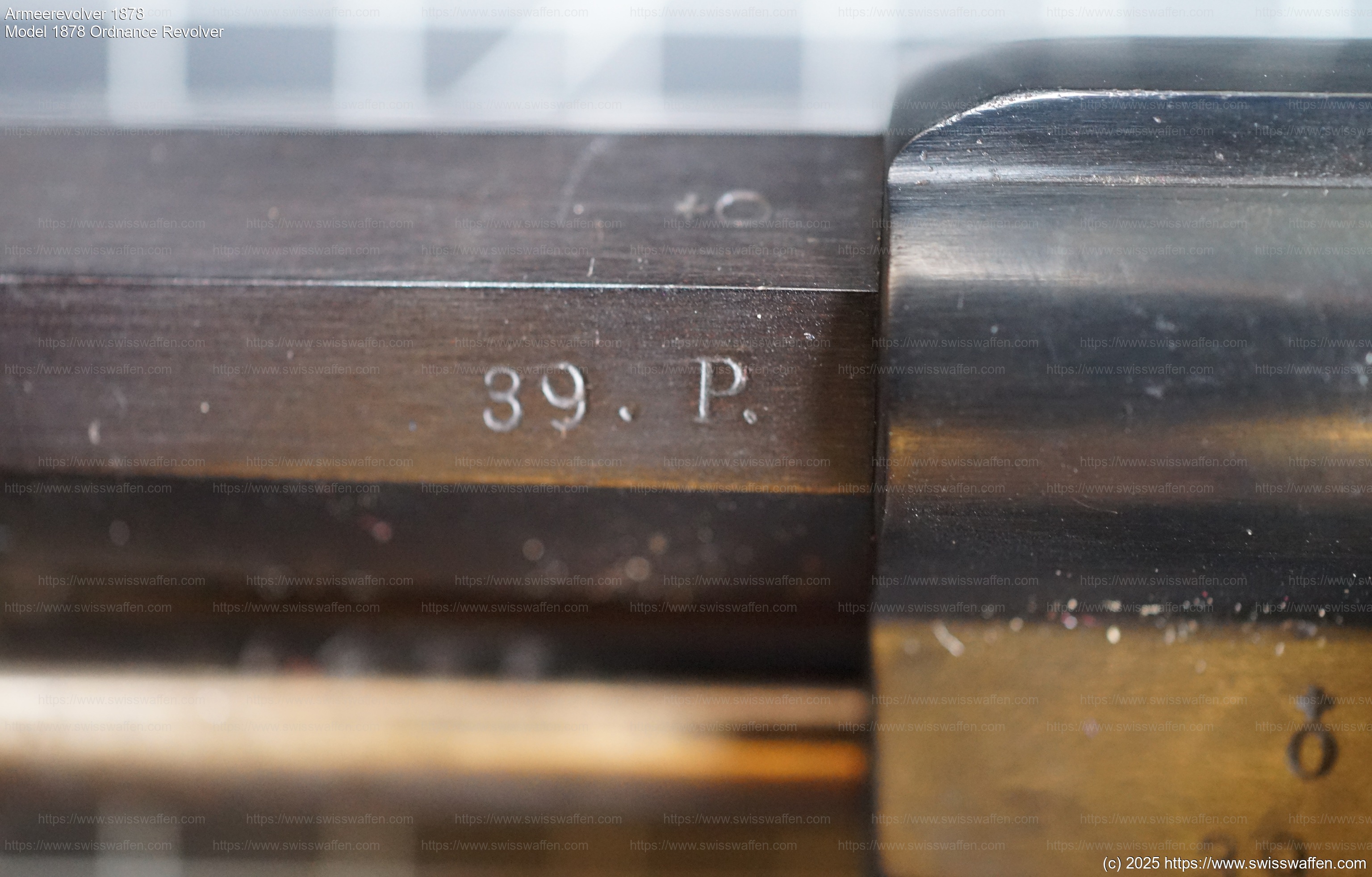

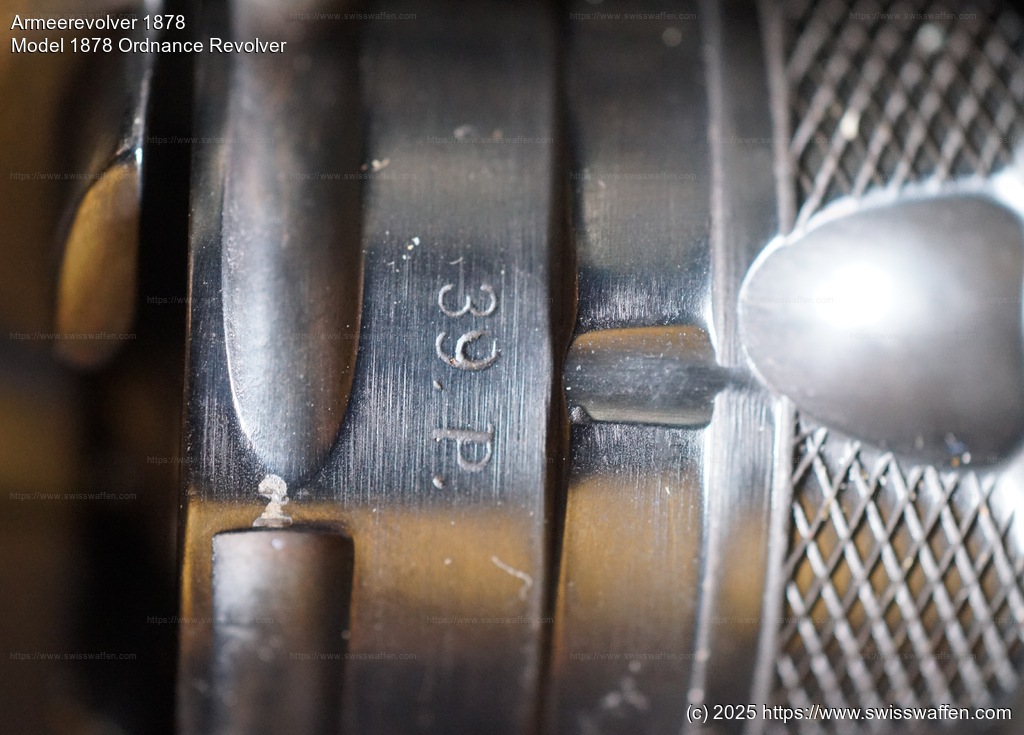

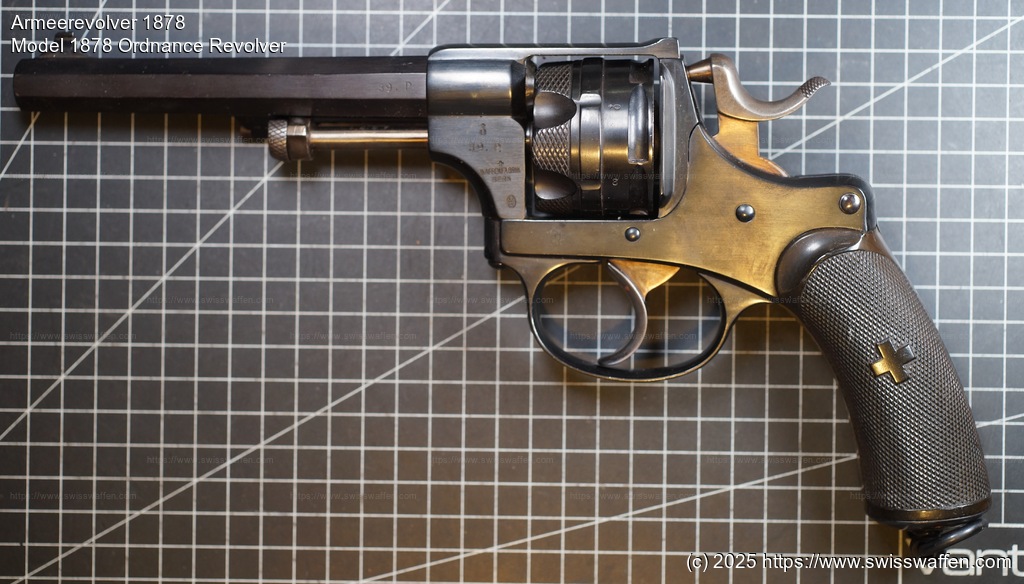

Full size (1.1 MB) Model 1878 Ordnance Revolver



Full size (1.9 MB) GER: Model 1878 Ordnance Revolver, Landesmuseum Zürich Location: Schweizerisches Nationalmuseum Zürich (http://www.nationalmuseum.ch)	Full size (1.1 MB) Model 1878 Ordnance Revolver	Full size (1 MB) Model 1878 Ordnance Revolver	Full size (1.1 MB) Model 1878 Ordnance Revolver	Full size (1.2 MB) Model 1878 Ordnance Revolver
Full size (1.3 MB) Model 1878 Ordnance Revolver	Full size (1.4 MB) Model 1878 Ordnance Revolver	Full size (1.3 MB) Model 1878 Ordnance Revolver	Full size (2.5 MB) Model 1878 Ordnance Revolver	Full size (2 MB) Model 1878 Ordnance Revolver
Full size (2.1 MB) Model 1878 Ordnance Revolver	Full size (1.9 MB) Model 1878 Ordnance Revolver	Full size (1.5 MB) Model 1878 Ordnance Revolver	Full size (1.3 MB) Model 1878 Ordnance Revolver	Full size (1.5 MB) Model 1878 Ordnance Revolver
Full size (639 KB) Model 1878 Ordnance Revolver	Full size (1.1 MB) Model 1878 Ordnance Revolver	Full size (1.4 MB) Model 1878 Ordnance Revolver	Full size (1.2 MB) Model 1878 Ordnance Revolver	Full size (1.4 MB) Model 1878 Ordnance Revolver
Full size (1.7 MB) Model 1878 Ordnance Revolver	Full size (1.1 MB) Model 1878 Ordnance Revolver	Full size (3.9 MB) Model 1878 Ordnance Revolver	Full size (1.4 MB) Model 1878 Ordnance Revolver	Full size (1.7 MB) Model 1878 Ordnance Revolver
Full size (3.6 MB) Model 1878 Ordnance Revolver	Full size (4.3 MB) Model 1878 Ordnance Revolver	Full size (3.2 MB) Model 1878 Ordnance Revolver	Full size (3.4 MB) Model 1878 Ordnance Revolver
